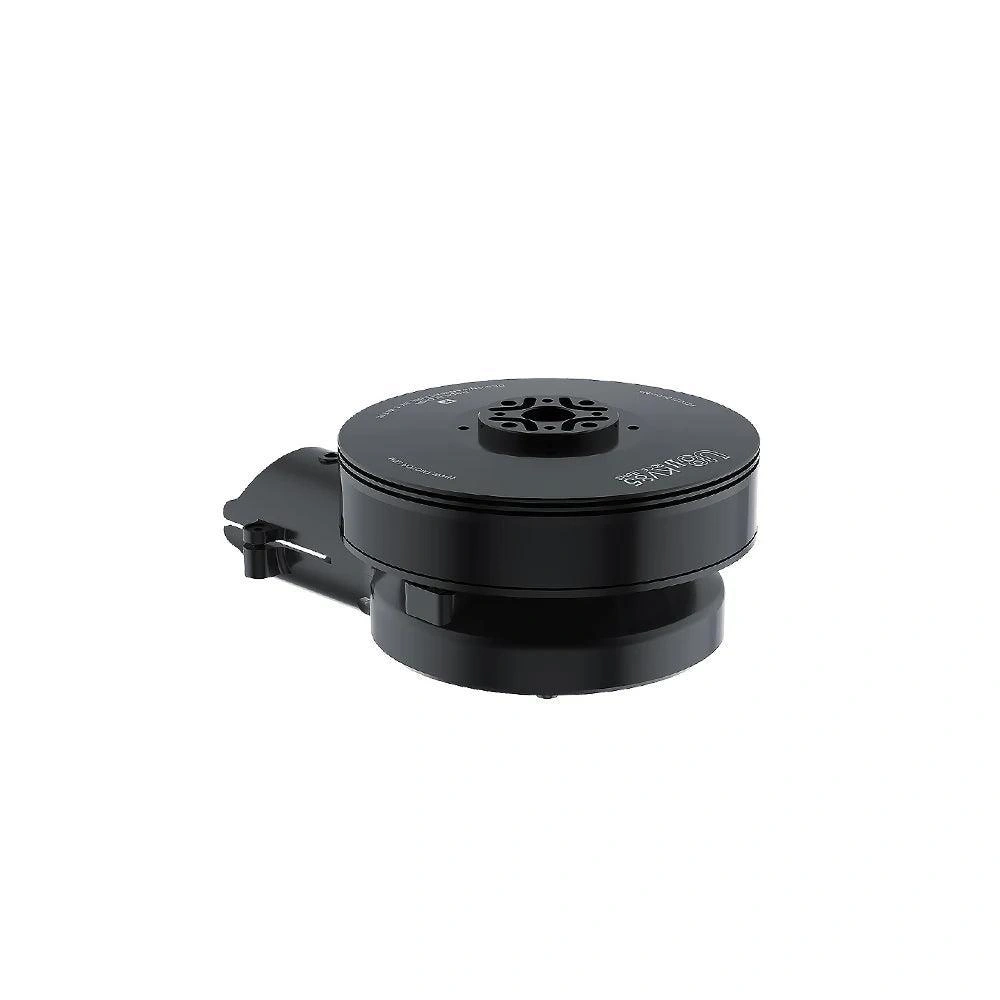

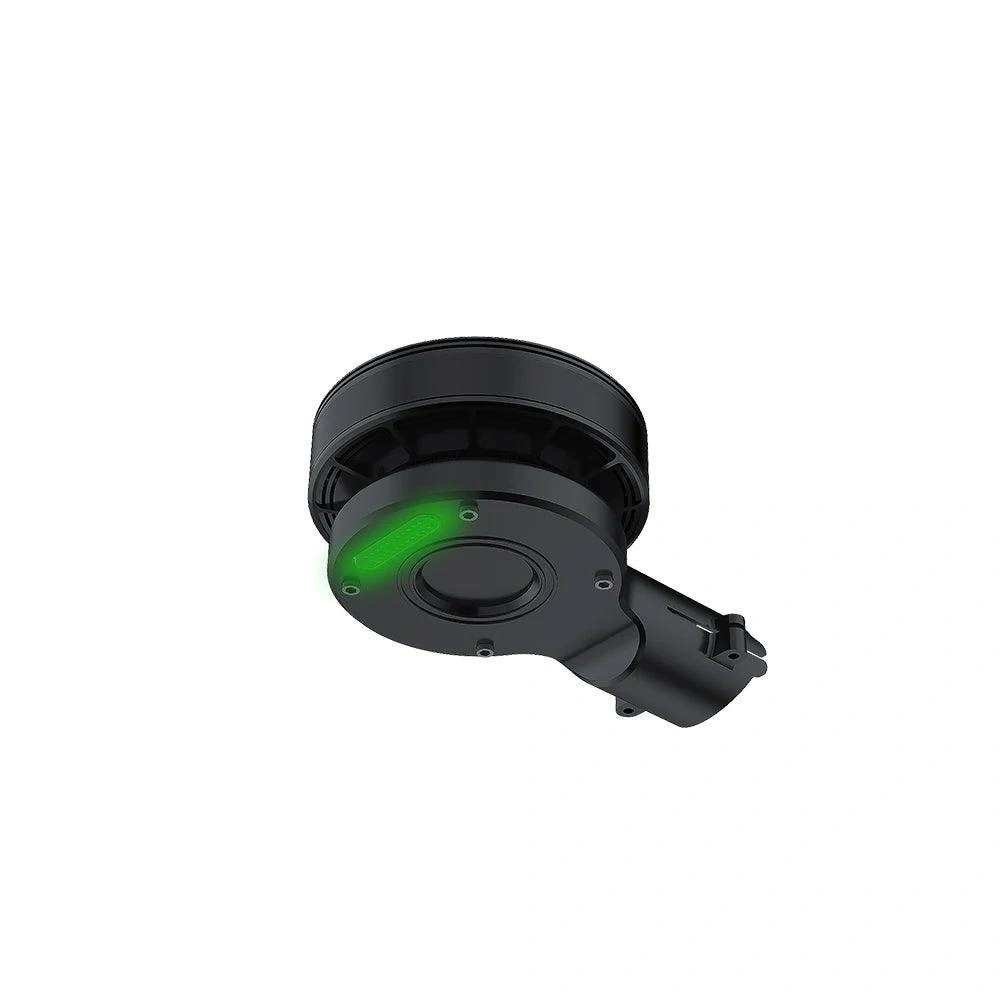

U8II-X Drone Arm Set (U8II KV190 Motor, Alpha 60A LV ESC, MF2815 Prop)
$266.50
$532.99
Color:
U8II KV190 + Alpha60A
U8II KV190 + Alpha 60A LV + MF2815
num:
Add To Cart
description

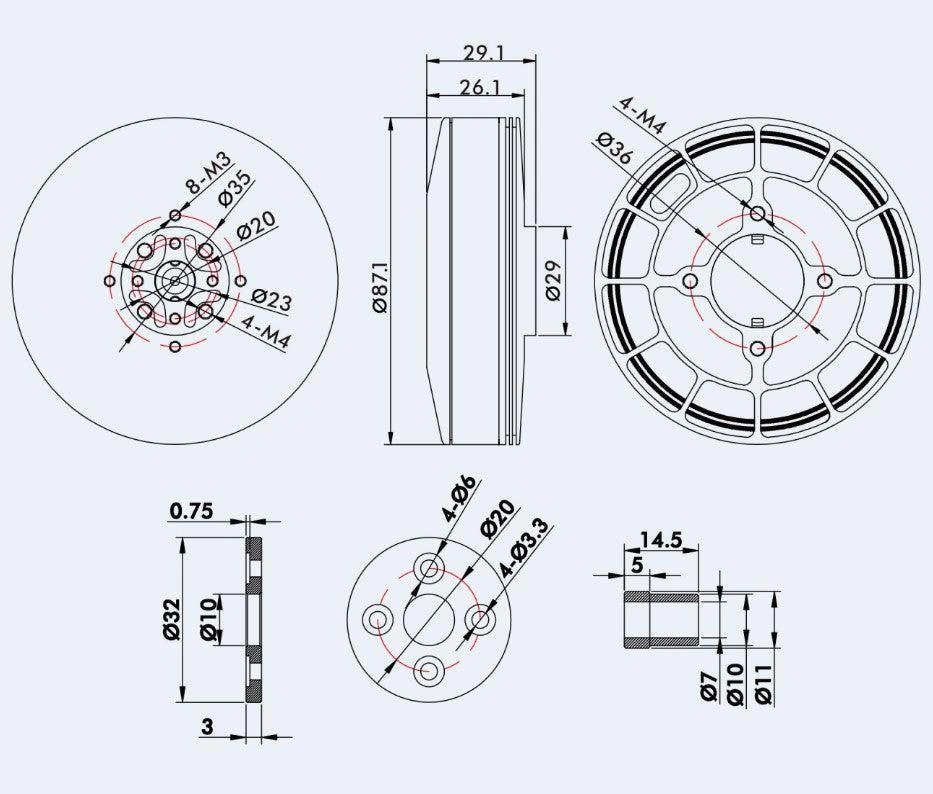

Diameter
87.1mm
Hoogte
29.1mm
Shaft Diameter
15mm
Configuratie
36N42P
Leid Spec
90mm
Ingress Beschermingsniveau
IP55
KV
190
Nominaal Voltage (Lipo)
6S
Motorgewicht (Incl. Kabel)
277g
Aanbevolen Propeller
28-29'
Stationaire Stroom (18V)
1.3A
Interne Weerstand
48
±
3ΜΩ
Piekstroom (180s)
43.7A
Max. Vermogen (180s)
1048.8W
Quadcopter (28CF)
12kg
Hexacopter (28CF)
18kg
Octocopter (28CF)
24kg

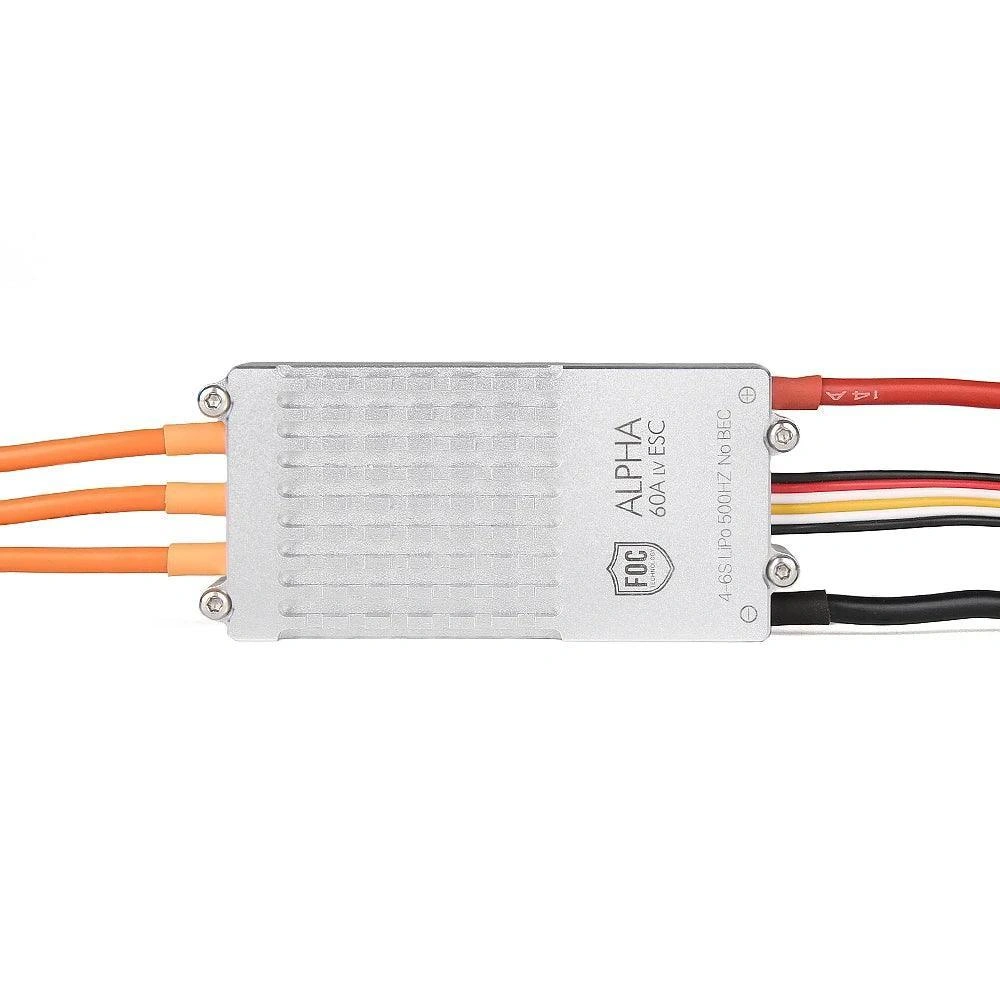

Model
Alpha 60A LV
Ondersteunde Spanning (12S)
18-52.2V
Continue Stroom
40A
Piekkstroom (10s)
60A
Standby Verbruik
≤50mA
BEC
NEE
Gasklep Positie Bereik
1100-1940μs
Gasklep Vernieuwingsfrequentie
500Hz
Reactiesnelheid gaspedaal
50ms

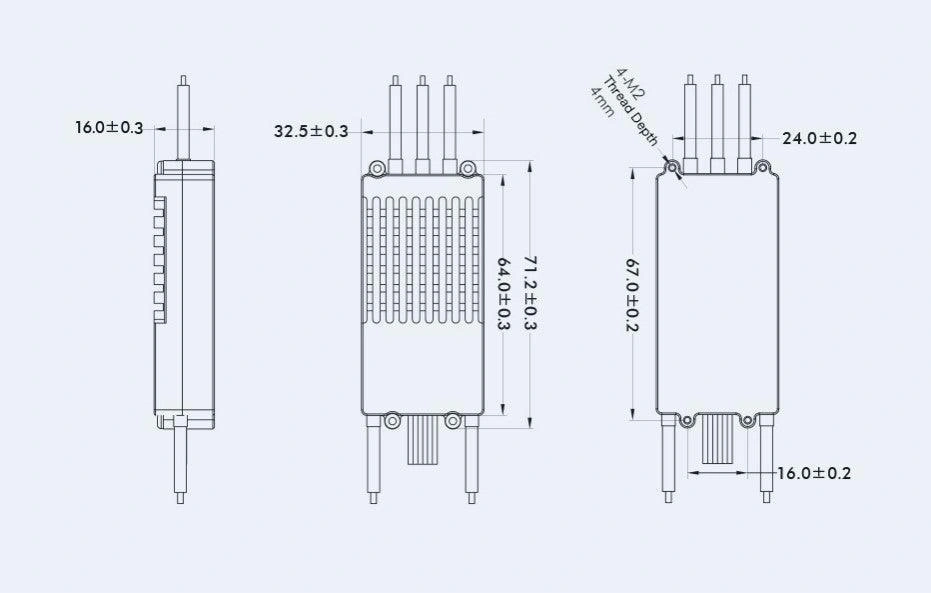

Maat
71.3*32.5*15.9mm (L*B*H)
Gewicht (incl. kabels)
62,8 g

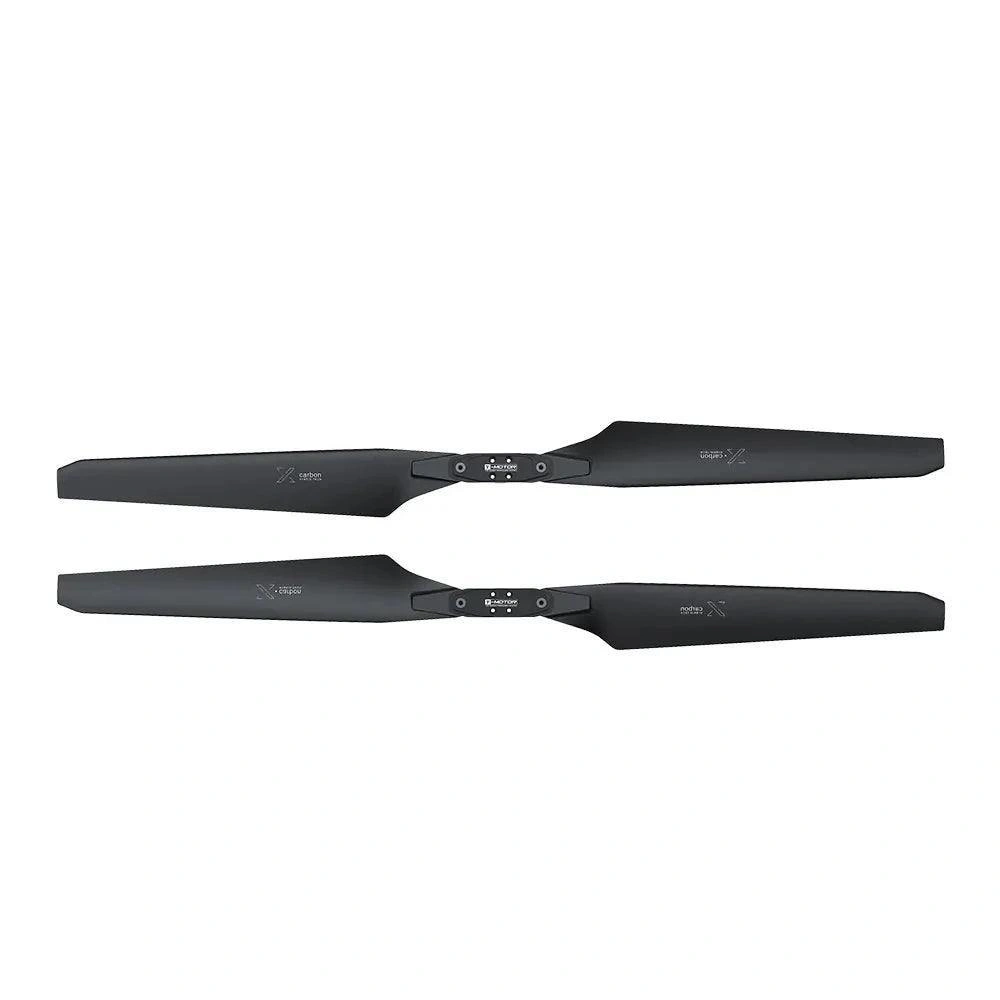

Model
MF2815
Materiaal
Polymer+CF
Gewicht (Enkele Propeller)
164g
Diameter
28.4inch (721.8mm)
Pitch
10.1inch (257.6mm)
Omgevingstemperatuur
-40°C tot 65°C
Aanbevolen Stuwkracht/RPM
3.5 - 7kg / 2200 - 3000RPM
Aanbevolen Max Stuwkracht/RPM
15kg / 5000RPM
